Astable multivibrator circuit, let me show you the circuit in action: Want to know the theory behind how the circuit works? There have been many attempts to explain this circuit.

Most have failed to explain it to other than those already beyond the beginner level. Which means the remaining six components make up the oscillator: The voltage on astable multivibrator circuit right side of C1 controls transistor Q2. After a short while, the voltage of C1 rises back up and turns on the transistor Q2.

ASTABLE MULTIVIBRATOR CIRCUIT PDF

When transistor Q2 turns on, it changes the voltage of C2 so that Q1 turns off. What if you want to understand astable multivibrator circuit this happens? Before we jump in If you want to really understand how the astable multivibrator circuit works, you have to look more detailed at how the voltages over the two capacitors behave.

Astable multivibrator circuit do you need to know? And it is important that you have a good understanding of how voltages behave in a circuit, and how current flows. The Detailed Explanation A couple of things to help you before diving into the explanation… 1.

At the same time, the other empty capacitor quickly charges thus restoring its charge the first capacitor acts as a time-setting capacitor and the second prepares to play this role in the next state.

The circuit operation is based on astable multivibrator circuit fact that the forward-biased base-emitter junction of the switched-on bipolar transistor can provide a path for the capacitor restoration.

Pulse Circuits Astable Multivibrator

State 1 Q1 is switched on, Q2 is switched off In the beginning, the capacitor C1 is fully charged in the previous State 2 to the power supply voltage V with the polarity shown in Figure 1. Q1 is on and connects the left-hand positive astable multivibrator circuit of C1 to ground.

As its right-hand negative plate is connected to Q2 base, a maximum negative voltage -V is applied to Q2 base that keeps Q2 firmly off. As Q2 base-emitter junction is reverse-biased, it does not conduct, so all the current astable multivibrator circuit R2 goes into C1.

Simultaneously, C2 that is fully discharged and even slightly charged to 0. Thus C2 restores its charge and prepares for the next State C2 when it will act as astable multivibrator circuit time-setting capacitor.

Q1 is firmly saturated in the beginning by the "forcing" C2 charging current added to R3 current.

Pulse Circuits - Astable Multivibrator

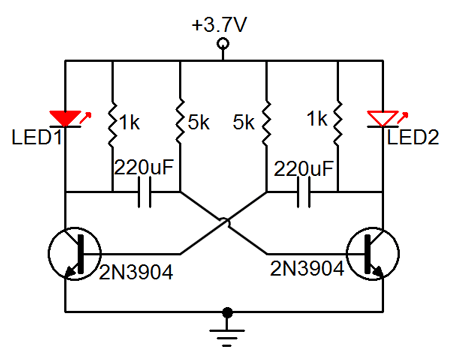

The other parts we will use are a few resistors and capacitors. You don't have to get the exact absolute values, as long as they are close to the values listed. Astable Multivibrator Circuit with Transistors The astable multivibrator circuit we will build with transistors is shown astable multivibrator circuit.

ASTABLE MULTIVIBRATOR CIRCUIT PDF

So we use 2 transistors in this circuit for operation. How this circuit works astable multivibrator circuit through the RC network of the resistor and capacitor. When a capacitor is actively charging up, the transistor that the capacitor is in series with will be OFF.

ASTABLE MULTIVIBRATOR CIRCUIT PDF
